Refined Broadway Streetscape Plan Ready for Public Debut

By Eric Richardson
Published: Monday, November 23, 2009, at 11:09AM
Broadway Streetscape Design Eric Richardson []

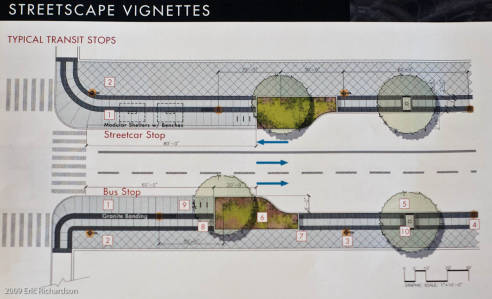

A rendering from the Broadway Streetscape Master Plan shows the roadway reduced to three lanes, with curb bump-outs, street trees, loading and parking space and a granite band design motif that runs along the street.

As they move forward on efforts to revitalize what was once Los Angeles' shopping and entertainment hub, Broadway planners are proposing something very un-L.A. -- taking lanes away from cars.

On Tuesday evening, the public will get the chance to comment on a Streetscape Master Plan that includes the removal of three traffic lanes, new space for parking and loading, a wider sidewalk and a unified motif for paving and fixtures.

Those who saw the very early plans presented by Melendrez in February will find the refined work to be much more toned down. Colorful paving flourishes have given way to a more stately design of granite and concrete, intended to allow the theatres and the existing stretches of colorful terrazzo to stand out.

The street itself would be reduced from three lanes in each direction to one lane traveling south and two going north. Sidewalk bump-outs at the corners and mid-block would frame new space for parking and loading on both sides of the street.

The western sidewalk would be widened eight feet, allowing a southbound streetcar track to run far enough toward the center of the street to clear existing utilities below.

Designs on tree grates and transit shelters would take their inspiration from the look of Broadway's original streetlights, replicas of which would be installed at half the spacing of the currently existing lights. Street trees would make an appearance, with a focus on vertical species that would not block views of the theaters. Planters in the bump-outs would provide stormwater filtration and greenery.

While the design is still being tweaked, traffic studies done for the project say that the lane configuration is doable, and both LADOT and Metro are said to be on-board.

Don't expect to see these changes any time soon, though. Environmental studies are likely to be done as part of the streetcar project, and installation would come in 2014. A demonstration project, using planters and paint to simulate the traffic changes, could take place in 2012 or 2013.

Both the streetscape plan and the streetcar are part of the effort being led by Councilman Jose Huizar's office.

A public presentation on the streetscape plan will take place on Tuesday, November 24, at The Exchange (114 W. 5th). Open house format from 5:30 to 7:30pm, with a presentation at 6:30pm.

SHARE:

||

Related Topics


Topic:
Bringing Back Broadway

16 stories


Related Stories:


Conversation

Guest 1

General Jeff on November 23, 2009, at 11:14AM – #1

WOW! I'm excited and I look forward to seeing this Master Plan in person.


Guest 2

David Kennedy on November 23, 2009, at 12:16PM – #2

What is the plan for all the southbound traffic? Broadway has a lot of bus traffic. Hill and/or Spring Street?


Eric Richardson () on November 23, 2009, at 12:31PM – #3

Southbound cars would still be allowed, though obviously they might get better speeds on a neighboring street.


Guest 3

tornadoes28 on November 23, 2009, at 02:29PM – #4

Spruced up street with all the ugly, cheap music stores and wedding shops blaring their wacko music. It's like trying to put a pig in a pretty dress. It's still a pig.


Guest 4

Lawrence on November 23, 2009, at 02:51PM – #5

The idea here is that many of the existing stores will either clean up their facades to keep up with the improved streetscape or leave. Many are already leaving the area opening up space for other retailers to come in. Some of those that are remaining are improving the look of their stores with a cleaned up look and improved signage (think Fallas Paredes). This is obviously the first step toward remaking of Broadway.


Guest 5

D on November 23, 2009, at 02:54PM – #6

Re: Tornado, its the first step. Obviously these changes are being made to promote better usage of the street and to attract higher end retailers. I think its fantastic and look forward to all the positives a revitalized broadway will have on Downtown LA.


Guest 6

Juanito on November 23, 2009, at 07:06PM – #7

This is more like it, Melendrez Associates: a neutral background, subservient to that singular path of civic memory, all of it's delirious architecture.


Guest 7

Stephen Brandt on November 23, 2009, at 07:46PM – #8

I hope that unlike the shortsighted cities of Pasadena, etc, that they remove the "cobra" streetlights all together, rather than leaving them in, doing an every other deal with the vintage replicas.


Eric Richardson () on November 23, 2009, at 08:36PM – #9

Stephen: The plan would be to use the historic bases of the lights that are in place, but to shorten the poles and replace the fixtures. All the lights would end up the same.


Guest 8

Matt on November 23, 2009, at 11:34PM – #10

A bike lane would be great, as there are no established north-south bike routes through downtown. Would fit the theme of slowing down automobile traffic and making the social space more democratically distributed.


Guest 9

Russell Brown on November 24, 2009, at 08:50AM – #11

In regards to the bike line, that was also part of the proposals that we studied for Broadway. In order to have loading and unloading, streetcar and bus platforms, through traffic for cars and wider sidewalks for both sides of the street, it was not possible to also add a dedicated bike lane. Trade offs were needed and we felt the traffic calming effects of wider sidewalks and landscaping were more appropriate to change the character of the street. This will allow outdoor dining and create more a parkway boulevard effect.

All of these parts along with significant street-scape enhancements and updated buildings and facades should significantly improve the pedestrian/ streetcar environment. That will make bike riding much safer even without a dedicated lane.

A better solution for bikes would be dedicated couplet on Main & Spring. On those streets there would not be the intensive cross over of so many traffic elements.


Guest 10

ubrayj02 on November 24, 2009, at 01:13PM – #12

So sad - no room for a protected bike lane? :( This would be an awesome place to draw tourists and locals on two wheels to shop and hang out - with a street car and a protected bike lane!

I guess if traffic is going slow enough (under 20mph) and there is a green stripe in the road, that would be a good compromise.

Any chance of a green ribbon?


Guest 11

henry on November 24, 2009, at 02:34PM – #13

The toned down look is quite nice compared the earlier designs. Granite would be great, and I hope the concrete is finished somehow on top. The protrusion for the streetcars is nice, but to duplicate that for the bus lane is a bit too much. Broadway already has very wide sidewalks as they are.

I do agree with the above posters that the lack of a dedicated bike lane is a wasted opportunity. I think to trade the bus platorms for a bike lane would have been a wiser choice. Any bicyclist know that buses already dominate the streets and the right of way.


Guest 12

peenee on November 24, 2009, at 05:37PM – #14

eric,

maybe you can do a little investagation on the after opening day ridership # for the new gold line extension? i was at union last saturday and it was mostly empty and no lines what so ever (the opening sunday had a 1.5 wait).

thanks, peenee


Guest 13

Tim on November 24, 2009, at 06:21PM – #15

Since the streetcar will head south along the west side of Broadway, I assume it will head north along the east side of Hill. I am wondering what kind of street/sidewalk enhancements (if any) are planned for Hill. At some point, Angel's Flight will reopen and that will be a popular stop on the Hill Street side.

Also, I read at the "Bringing Back Broadway" web page that the project area is from 2nd to Olympic. Though the streetcar might initially run from 2nd to Olympic, I hope the street redo extends another block in each direction. It would be a mistake to have the streetscape dramatically change right as the streetcar turns.


Guest 14

Bettie on November 28, 2009, at 12:34PM – #16

Has the idea of changing the crosswalk situation come up in these plans? If ALL traffic stopped, allowing pedestrians to cross at the same time, in all directions including diagionally, it would not only be a lot safer for pedestrians, but it would also reduce the traffic jams for drivers making turns (and those waiting behind them). This works so well in other parts of the country and the world. Why is L.A. so far behind the curve?


Eric Richardson () on November 28, 2009, at 01:01PM – #17

Bettie: It has come up, but there is resistance to the idea. In many ways, the arguments are exactly the same as they were in 1956, when we first tried scramble crossings on Broadway:

http://blogdowntown.com/2008/08/3517-scramble-crossings-coming-to-la-but-not-for


Guest 15

Russell Brrown on November 29, 2009, at 04:53PM – #18

Scramble crosswalks were brought up at the "City departments" presentation meeting before the public Tuesday evening presentation.

Kent Smith from Fashion District stated that the ones there are turning out to be a big problem and may be removed.

I have seen them in Beverly Hills and Old Town Pasadena. Anyone have experiences with these where they work? Where they do not work? What makes the difference? Not sure if using foreign countries as a good example really makes for an automatic go here. Although downtown does feel pretty international in many neighborhoods.

Just go to Hollywood & Highland and see the pedestrian crossings and how traffic comes to a standstill. However, it is possible with streetcars and buses to remotely control the traffic signals and pedestrian crosswalk signals so that turn only, no pedestrian crossings could be used to free up traffic as the streetcar approaches or is ready to leave.
